Manufacture Energy Saving Supply Industrial Electric Melting Furnace

1.0 set
MOQ
Manufacture Energy Saving Supply Industrial Electric Melting Furnace
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Condition: New
Type: Induction Furnace
Usage: Melting Furnace
Voltage: 575V
Dimension(L*W*H): It depends
Weight (T): 3 T
Power (kW): 1500
Warranty: 1 Year
Key Selling Points: Competitive Price
Applicable Industries: Manufacturing Plant
Showroom Location: None
Local Service Location: None
After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Product Name: Medium Frequency Induction Melting Furnace
Input voltage: 575V/Six phase
feature: Energy saving
Cooling: Water cooling system
Capacity: 3ton
Heating element: Thyristor(SCR)
Melting Material: Aluminium scrap
Induction coil: TU1 rectangular copper profile
Tilting way: Resistance
Application: Metallurgy/machinery/building materials/other industries
Сертификация: ISO9001 and patent
Основная информация
Сертификация: ISO9001 and patent
Оплата и доставка Условия
Packaging Details: Standard seaworthy wooden cases or according to the customorized requirements
Supply Ability: 35 Set/Sets per Month
Характер продукции
Product Description

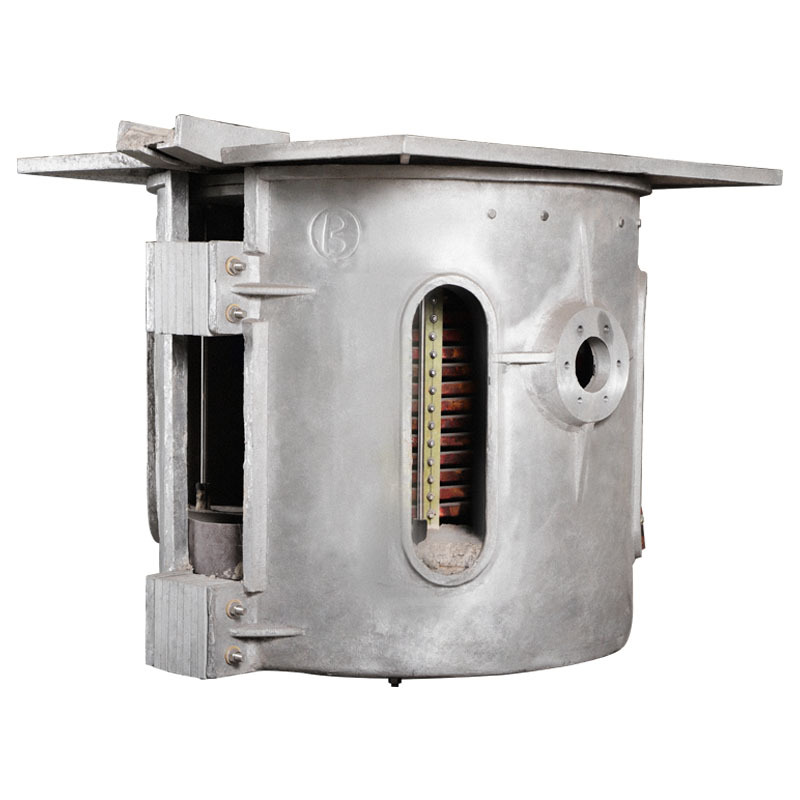

Induction furnace with Aluminum Shell
1.High melting efficiency, good power-saving effect, compact structure, and strong overload capability;
2.The temperature around the furnace is low, the smoke dust is less, and the working environment is good;
3.The operation process is simple and the smelting operation is reliable;
4.The metal composition is uniform;
5.Fast melting, easy furnace temperature control, and high production efficiency;
6.High furnace utilization and easy replacement.

Model

 Input voltage V
 Input current A
 DC voltage V
 DC current A
MD voltage V
MD frequency HZ
 MD power Kw
Matched furnace
T
KGPS-BL-250KW


380V/3-phase
380
513
466


1500


100-600
250
0.25T
KGPS-BL-500KW
760
513
931
500
0.5T
KGPS-BL-800KW
1216
513
1490
800
1T
KGPS-BL-1000KW

660V/6-phase
437
1782
536

2500




100-400
1000
1-1.5T
KGPS-BL-1200KW
525
1782
643
1200
1.5-2T
KGPS-BL-1500KW

800V/6-phase
541
2160
663

3200
1500
2-3T
KGPS-BL-2000KW
722
2160
884
2000
2-3T
KGPS-BL-2500KW

900V/6-phase
802
2430
983

3600
2500
3-5T
KGPS-BL-3000KW
962
2430
1179


100-300
3000
3-5T
KGPS-BL-3500KW



1000V/6-phase
1010
2700
1238



3800
3500
4-6T
KGPS-BL-4000KW
1155
2700
1415
4000
5-7T
KGPS-BL-5000KW
1443
2700
1769

100-250
5000
8T
KGPS-BL-6000KW
1732
2700
2123
6000
8-10T
KGPS-BL-8000KW


1250V/12-phas
924
3375
3695


4000


100-500
8000
10-12T
KGPS-BL-10000KW
1155
3375
4619
10000
15T
KGPS-BL-15000KW
1732
3375
6928
15000
20T
Product Advantage

  • Product Advantage

 1.Cooperating with researching and scientific institute, our factory designs and manufacture most advantage induction furnace and
own 24 patents.
2.We choose high quality accessories ,which are made by domestic famous brand.
(1) Yoke: Silicon steel sheet with 0.27mm thick and high magnetic perme ability produced by Wuhan Iron and Steel Company Limited
(2) Cooper bar: high quality cooper bar producted by CHINACO Luoyang Copper Co., Ltd.
(3) Wall thickness of induction coil : 5mm-8mm.
(4) Thyristor: Produced by TECHSEM .
Certifications
Company Information
Why choose us？
1. Our quality Our partners are all the top suppliers in the industry such as China best and biggest copper producer CHINALCO, China best SCR producer TECHSEM, China biggest steel supplier Baowu, and Korean brand water pipes. 2. History We have been involved in this field for 29 years since 1990, and have rich on-site and after-sales experience. 3. Patent technology As the core technology of the whole system, our self-developed main control board matches the whole system to the greatest extent to reduce the failure rate. 4. Our attitude Due to the low barriers to entry, many companies in the market are shoddy in pursuit of low prices. We never dare to cut corners in order to cater to our customers. Because we know that this will cause significant security risks to our customer in the future.

Our company’s main technical and management personnel have long been engaged in technical and management work in the field of medium frequency induction melting systems, and have extensive experience in equipment design,process, and manufacturing.

On this basis, it has formed a unique understanding and implementation of the medium frequency induction melting system and has the ability to implement it in product design. Based on our strong technical strength, all products have independent intellectual property right s and obtained 11 patented technologies.
