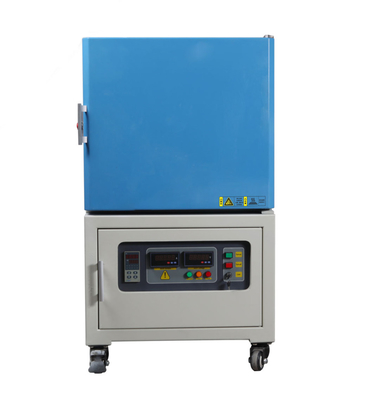

High quality scientific research and education double shell structure sintering furnace for laboratory 1700 degree sintering furnace in industrial boiler

1 Set
MOQ
High quality scientific research and education double shell structure sintering furnace for laboratory 1700 degree sintering furnace in industrial boiler
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Condition: New
Type: Resistance Furnace
Usage: Sintering Furnace
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Temperature control system
Voltage: 220V
Dimension(L*W*H): 620*680*1050mm
Weight (T): 0.20 T
Power (kW): 6
Warranty: 1 Year
Key Selling Points: Accurate temperature control
Applicable Industries: Scientific research and education, Industrial manufacturing, Aeronautics and astronautics, Military, Medical, Moulds, Automotive
Showroom Location: None
Product Name: Oxide ceramic sintering furnace
Chamber size(W *H*D): 250mm*200mm*300mm
Furnace body structure: Double shell structure
Chamber material: Alumina polycrystalline fiberboard
Furnace door structure: Left side door open
Temperature control: ±1℃
Heating element: MoSi2 Rods
Working temperature: ≤1600℃
Heating rate: ≤10℃/min
Cooling rate: Above 700℃ ≤10℃/min
Основная информация
Оплата и доставка Условия
Packaging Details: Wooden frame packaging to meet the logistics and transportation standards.
Характер продукции
Product Description
The green parts printed by oxidized ceramic materials (such as zirconia, alumina, etc.) are often sintered by the 1700℃ muffle furnace to obtain the final compact ceramic parts. 1700℃ value-added box-type experimental electric furnace uses high-quality silicon molybdenum Rod as heating element, adopts intelligent temperature control system, controlled by silicon controlled rectifier, and has high temperature control precision; the hearth adopts the assembly structure of high-quality 1700 alumina polycrystalline fiber inorganic material formed by vacuum adsorption of Japanese technology, which can be used for a long time without fracture or collapse. The hearth body is a double-layer furnace shell, equipped with air cooling system, effectively guarantee the surface temperature of the shell.

Scope of Application

It is used for powder roasting, ceramic sintering, high temperature experiment, material processing and quality inspection in universities, scientific research institutes, industrial and mining enterprises.
Product Paramenters
Equipment name
Oxide ceramic sintering furnace
Equipment model
SXL-1700C
Chamber size
D300mm×W250mm×H200mm
Equipment weight
195kg
Equipment size
620mm×680mm×1050mm
Equipment power
6KW
Power supply
AC220V，50/60Hz
Fixed bottom
Caster
Furnace body structure
Double shell structure
Chamber material
High quality alumina polycrystalline fiberboard assembled furnace with vacuum adsorption molding by Japanese technology
Furnace door structure
Left side door open
Temperature control system
The temperature control system adopts artificial intelligence adjustment technology, has PID adjustment and self-tuning functions, and can compile 50 sections of temperature rise and fall procedures.
Temperature control precision
±1℃
Display mode
Instrument panel display
Heating element
High quality MoSi2 rods
Temperature measurement method
B-type thermocouple, rear temperature measurement
Operating temperature
The highest temperature 1650 ℃, continuous working temperature ≤ 1600 ℃
Heating rate
Recommended ≤ 10℃/min, fastest heating rate ≤ 20℃/min
Cooling rate
Above 700℃ ≤ 10℃/min
Execution Criteria
GB/T 10066.1-2004, GB/T 10067.4-2005
Standard configuration
Main engine, crucible plier, instruction, certificate of conformity, warranty card
